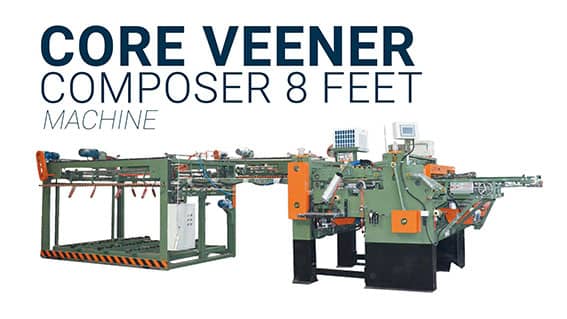

CORE VEENER COMPOSER 8 FEET

Satu operator diperlukan, tanpa tumpang tindih atau sambungan terbuka, tanpa istirahat

Menghemat 70% penyelesaian CORE
Hemat 80% pekerjaan perakitan
Hemat 50% pekerjaan mendempul

1. Kontrol PLC, operasi tanpa awak, proses otomatis, penghematan tenaga kerja

2. Pemeriksaan ketebalan yang tepat, bahkan ketebalan, pemolesan minimum

3. Servo drive, tumpang tindih dan kontrol bersama yang efektif

4. Ulir yang sangat diperkuat, meningkatkan kekuatan tarik dan fleksibilitas horisontal produk, tanpa putus.

5. Didukung oleh SMC Jepang, FESTO, Taiwan Taida, German Schneider dan merek tingkat internasional lainnya

Knife length	2700 mm
Working veneer width	1950-2560 mm
After jointing size	2600x1300 mm
Veneer thickness	1.2-4.0 mm
Feeding speed	24(can be adjust) Max. m/Min
Number of glue threads	8-10(as your required) Rows
Number of detectors	0-25(Max);11 normal Point
Total power required	28 kw
In- feed conveyor (controlled by Servo Motor)	4.5 kw
Defect clipper	50×75 Air- operated
Waste divider	4.5 kw
Out feed conveyor (controlled by Servo Motor)	4.5 kw
Dimension clipper	2.2 kw
Cooling fan	0.33 kw
Water cooler	1.7 kw
Water circulation pump	0.08 kw
Heater for glue melting for edge and yarn application	10(discontinuity) kw
Table lifter for stacker	2.2 kw
Transferring conveyor	0.75 kw
Stacker belt conveyor	0.75/0.4 kw
Air consumption	60 Liter/Min
Total gross weight	12500 kg
Shipping measurement	2.43.8M2.7M(composing part ) ,2.25x3.375x ( Container 40’ x 1 unit )
