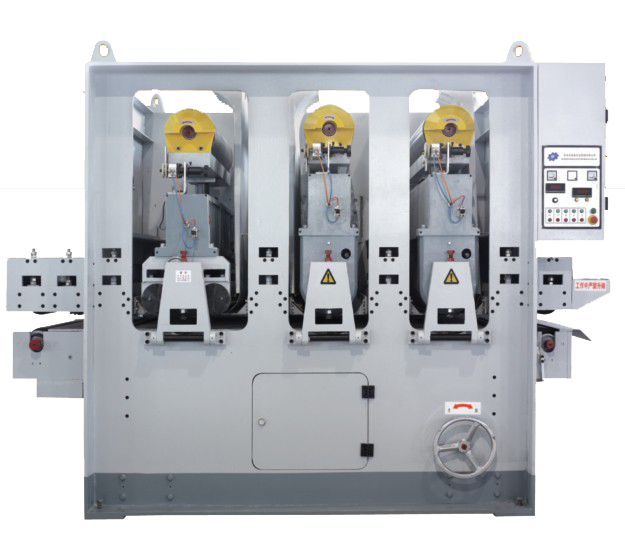

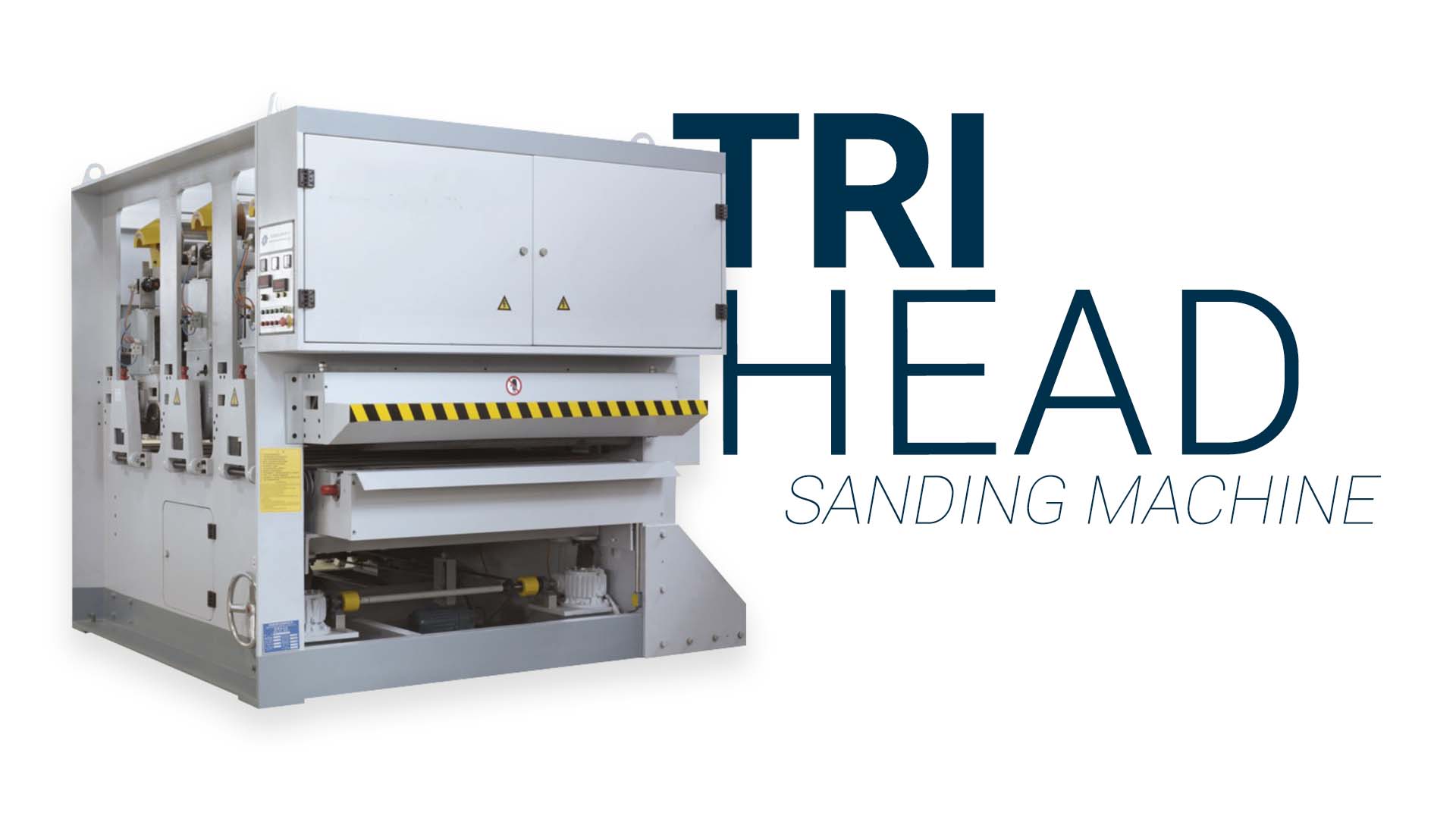

TRI HEADS SANDING MACHINE AMT1313 R-R-P

TRI HEADS SANDING MACHINE AMT1313 R-R-P


Spesifikasi


Sanding width 40-1300mm Motor for feed 7,5kw
Sanding thickness 2.5-110mm Motor for lifting 0.75kw
Sanding length >780mm Motor brush 0.75kw
Abrasive belt speed 20, 20, 24m/s Feed Speed 20-50, 50-80m/min
Abrasive belt dimension 1330 x 2620mm Operating pressure 0.6-0.8MPa
Power supply 380v 50hz Capacity of suction extraction 7900m3/h
Total capacity motor 29.5kw Dimension 3140x2770x2440mm
Motor for sanding head 30kw 22kw 18,5kw Net weight 9800kg
